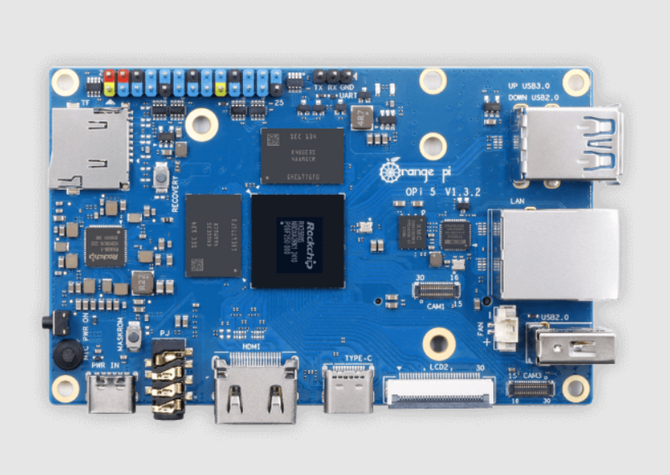

Copy of Single Board Computer Orange Pi5 8G

No reviews yet Write a Review
SoC:
Rockchip RK3588S (8nm LP process)
CPU:
• 8-core 64-bit processor • Big.Little Architecture: 4xCortex-A76 and 4xCortex-A55, Big core cluster is 2.4GHz, and Little core cluster is 1.8GHz frequency.
GPU:
• Arm Mali-G610 MP4 “Odin” GPU • Compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2 and Vulkan 1.2 • 3D graphics engine and 2D graphics engine
NPU:
Built-in AI accelerator NPU with up to 6 TOPS, supports INT4/INT8/INT16 mixed operation
PMU:
RK806-1
RAM:
8GB(LPDDR4/4X)
Memory:
• QSPI Nor FLASH 16MB • MicroSD (TF) Card Slot • M.2 M-KEY Socket
USB:
USB3.0 × 1 USB2.0 × 2 Type-C (USB3.1) ×1
Video Output:
• HDMI2.1, up to 8K @60Hz • DP1.4 (DisplayPort), DP1.4 and USB3.1 ports are multiplexed, and the port is shared with Type-C • 2 * MIPI D-PHY TX 4Lane, configurable up to 4K @60Hz
Audio:
CODEC: ES8388 • 3.5mm headphone jack audio input/output • Input: Onboard MIC • HDMI 2.1 eARC
Ethernet:
10/100/1000Mbps Ethernet
Expansion Port:
For extending UART, PWM, I2C, SPI, CAN and GPIO interfaces.
M.2 M-KEY Socket Expansion Slot:
Support PCIe NVMe SSD, Support custom PCIe Wi-Fi6+BT5.0 module
Button:
1×MaskROM key 1×Recovery key 1×On/Off key
Power Source:
Support Type-C power supply, 5V @ 4A
LED:
Power indicator: red, Status indicator: green
FAN:
5V FAN
Debugging:
3 Pin debug serial port (UART)
Supported OS:
Orangepi OS(Droid)、Orangepi OS(Arch)、Ubuntu、Debian、Android12
€198.00

The Orange Pi 5 8G Single Board Computer (SBC) is a high-performance computing platform designed for developers, hobbyists, and industrial application…

Adding to cart… The item has been added

Copy of Single Board Computer Orange Pi5 8G

€198.00
6 customers are viewing this product
Description

The Orange Pi 5 8G Single Board Computer (SBC) is a high-performance computing platform designed for developers, hobbyists, and industrial applications requiring enhanced memory and processing power. Equipped with 8GB of RAM and a powerful ARM-based processor, it provides smooth multitasking, fast data processing, and reliable performance for demanding projects.

Featuring versatile connectivity options, including USB 3.0, Gigabit Ethernet, HDMI, and extensive GPIO pins, the Orange Pi 5 8G supports robust hardware integration for DIY electronics, robotics, IoT applications, media centers, and custom computing solutions. Its compact and lightweight design allows easy installation in embedded devices or portable computing setups.

The SBC supports multiple operating systems, including Linux and Android, enabling developers to build projects ranging from AI and machine learning applications to media streaming and home automation systems. High-speed storage and peripheral support make it ideal for professional and hobbyist computing environments.

Key Features & Recommended Use Cases:

  • Advanced DIY electronics, robotics, and IoT projects

  • Media centers, servers, and home automation setups

  • Supports Linux, Android, and other operating systems

  • High-speed storage and multiple connectivity options

  • Compact, lightweight, and high-performance SBC design

With powerful memory, versatile connectivity, and professional-grade performance, the Orange Pi 5 8G Single Board Computer is an ideal choice for developers, engineers, and hobbyists seeking flexible, high-performance computing in a compact package.
