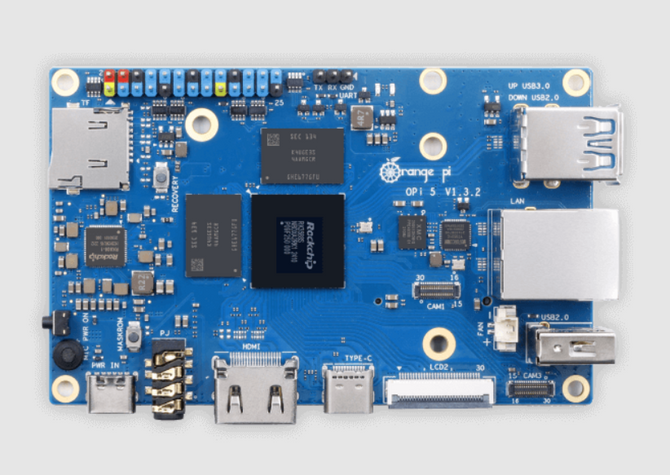

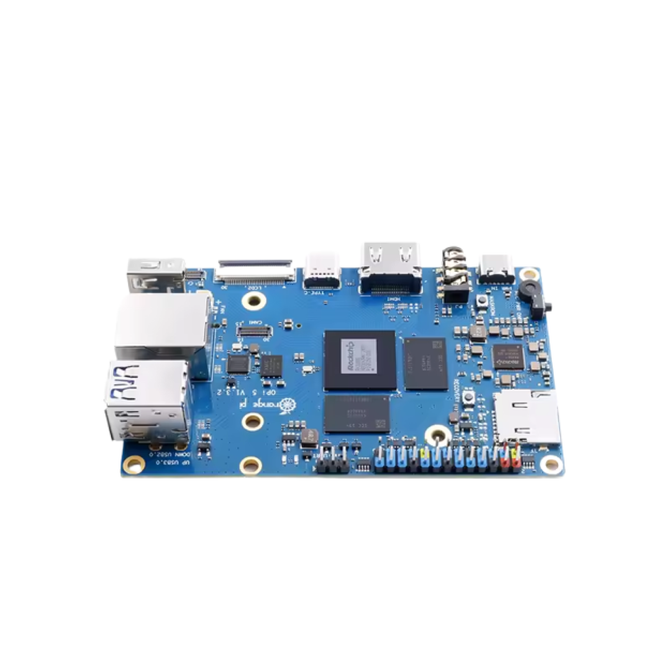

Single Board Computer Orange Pi5 4G

No reviews yet Write a Review
SoC:
Rockchip RK3588S (8nm LP process)
CPU:
• 8-core 64-bit processor • Big.Little Architecture: 4xCortex-A76 and 4xCortex-A55, Big core cluster is 2.4GHz, and Little core cluster is 1.8GHz frequency.
GPU:
• Arm Mali-G610 MP4 “Odin” GPU • Compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2 and Vulkan 1.2 • 3D graphics engine and 2D graphics engine
NPU:
Built-in AI accelerator NPU with up to 6 TOPS, supports INT4/INT8/INT16 mixed operation
PMU:
RK806-1
RAM:
4GB(LPDDR4/4X)
Memory:
• QSPI Nor FLASH 16MB • MicroSD (TF) Card Slot • M.2 M-KEY Socket
USB:
USB3.0 × 1 USB2.0 × 2 Type-C (USB3.1) ×1
Video Output:
• HDMI2.1, up to 8K @60Hz • DP1.4 (DisplayPort), DP1.4 and USB3.1 ports are multiplexed, and the port is shared with Type-C • 2 * MIPI D-PHY TX 4Lane, configurable up to 4K @60Hz
Audio:
CODEC: ES8388 • 3.5mm headphone jack audio input/output • Input: Onboard MIC • HDMI 2.1 eARC
Ethernet:
10/100/1000Mbps Ethernet
Expansion Port:
For extending UART, PWM, I2C, SPI, CAN and GPIO interfaces.
M.2 M-KEY Socket Expansion Slot:
Support PCIe NVMe SSD, Support custom PCIe Wi-Fi6+BT5.0 module
Button:
1×MaskROM key 1×Recovery key 1×On/Off key
Power Source:
Support Type-C power supply, 5V @ 4A
LED:
Power indicator: red, Status indicator: green
FAN:
5V FAN
Debugging:
3 Pin debug serial port (UART)
Supported OS:
Orangepi OS(Droid)、Orangepi OS(Arch)、Ubuntu、Debian、Android12
€157.00

The Orange Pi 5 4G Single Board Computer (SBC) is a high-performance compact computing platform designed for hobbyists, developers, and industrial app…

Adding to cart… The item has been added

Single Board Computer Orange Pi5 4G

€157.00
6 customers are viewing this product
Description

The Orange Pi 5 4G Single Board Computer (SBC) is a high-performance compact computing platform designed for hobbyists, developers, and industrial applications. Equipped with a powerful ARM-based processor and 4GB of RAM, it provides fast, reliable performance for multitasking, media playback, and software development projects.

Featuring multiple connectivity options, including USB, Ethernet, HDMI, and GPIO pins, the Orange Pi 5 allows flexible hardware integration for DIY electronics, robotics, IoT projects, and custom computing solutions. Its compact and lightweight design makes it easy to embed into small devices, home automation setups, or portable computing projects.

The SBC supports various operating systems, including Linux distributions and Android, providing versatility for programming, media, and server applications. With high-speed storage options and advanced peripheral compatibility, it is ideal for building media centers, learning platforms, or embedded computing projects.

Key Features & Recommended Use Cases:

  • DIY electronics, robotics, and IoT projects

  • Media centers and home automation applications

  • Supports Linux, Android, and other operating systems

  • High-speed storage and multiple connectivity options

  • Compact, lightweight, and versatile SBC design

With powerful computing, versatile connectivity, and professional-grade reliability, the Orange Pi 5 4G Single Board Computer is perfect for developers, hobbyists, and engineers looking for flexible and high-performance computing in a compact package.
